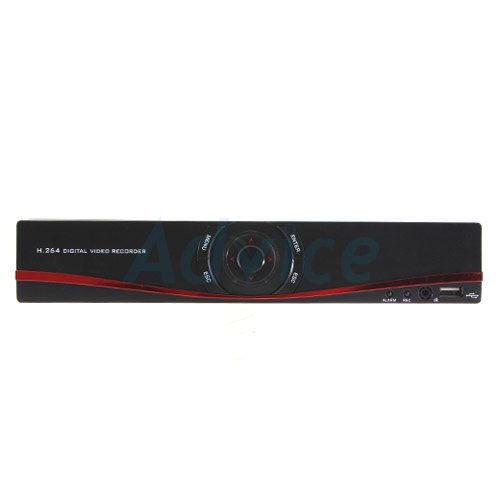

CCTV 8CH. DVR PeopleFu#5008HV

Model :5008HV

Main Processor :Embedded LINUX operating system

System Resources :Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up

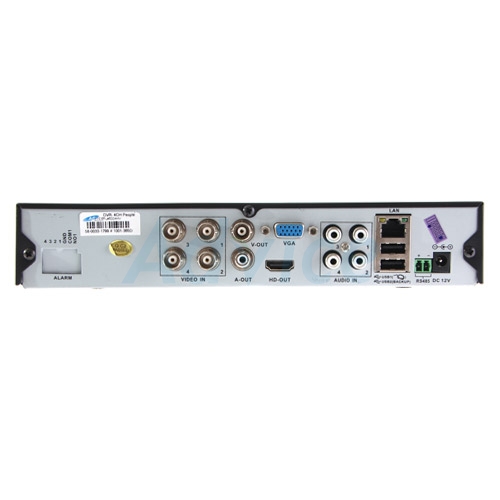

Video Input :8ch BNC(1.0Vp-p,75Ω)

Video Standard :PAL(625 lines, 50fps); NTSC(525lines, 60fps)

Video Output :1ch BNC(1.0Vp-p,75Ω), 1ch VGA, 1ch HDMI

Audio Input :4ch RCA (200-2800mV,30KΩ)

Audio Output :1ch RCA (200-3000mV,5KΩ)

Video/Audio Compression :H.264(Main Profile) /G.711A

Recording Mode :Manual, alarm, motion detection, timing

Alarm Input :No

Playback Channel :960H/D1/CIF

Backup Mode :Video 720P:10G~42G/day*channel,1080P:20G~80G/day*channel,audio 691.2M/day*channel

Local Hard Disk, Network

Network backup, USB portable HDD, USB (FAT32 form)

Network Functions :DHCP/ADSL、PPPOE、 SMTP、TCP / IP、DDNS、Wireless dial、WIFI、P2P

Hard Disk :1* SATA HDD interface,(1 HDD capacity up to 2TB)

USB Interface :3* USB 2.0 port

RS485 :1*RS485 port, Support more than 5 kinds protocols

Power Supply :DC 12V / 2A

Power Consumption :<10W(without HDD)

Dimension :325mm(L)* 245mm(W)* 52mm(H)

Weight :0.9kg±0.1kg

Smart Phone :YES (Supporting iPad, iPhone,Android;iPad, iPhone, Andriod remote playback function )

Ethernet :1*RJ45 10/100 Base-T self-adaptive Ethernet port

Warranty :1Y
