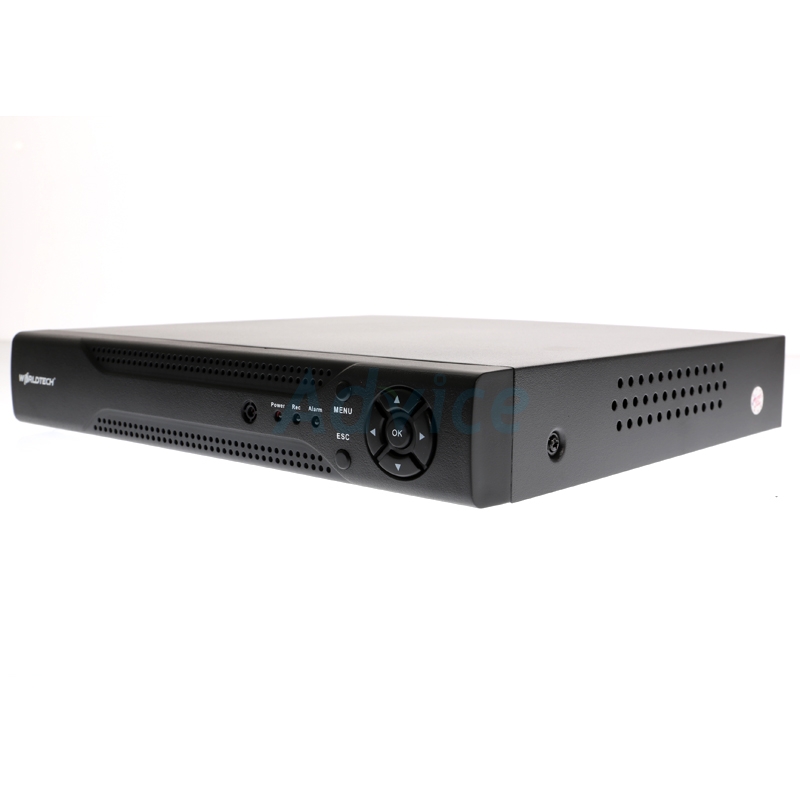

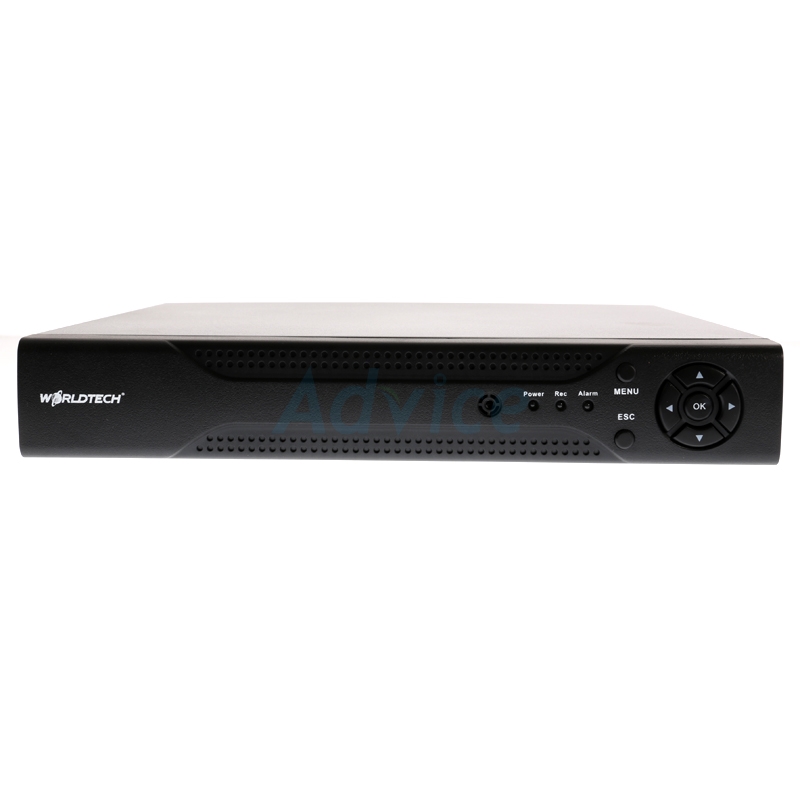

CCTV 8CH. DVR WORLDTECH#DVR1D8

Brand :WORLDTECH

Model :DVR1D8

Main Processor :Huawei Hi 3520D

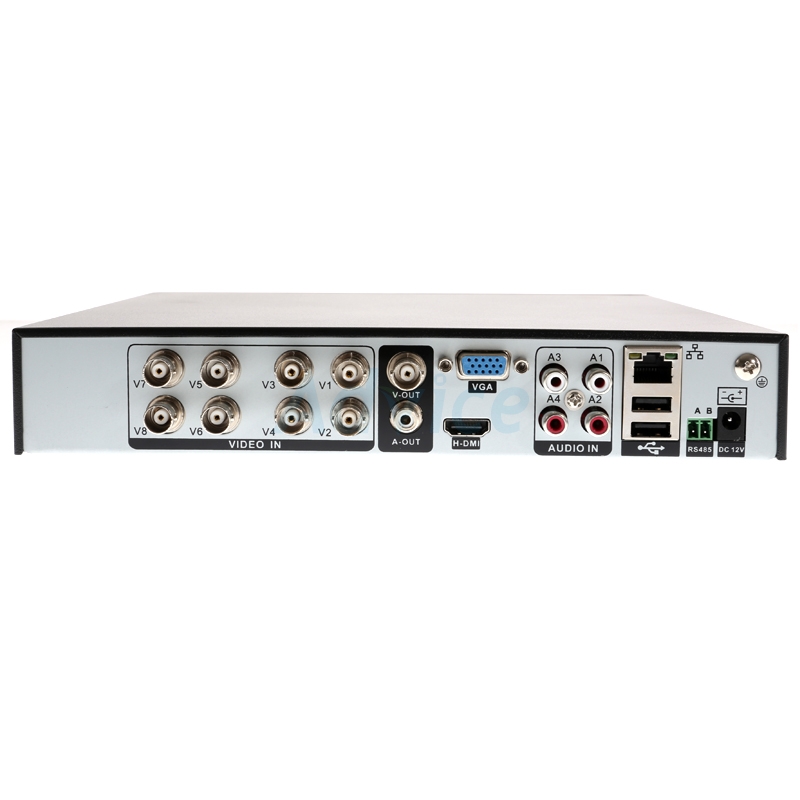

Video Input :8 BNC

Video Output :1ch VGA,1ch HDMI

Audio Input :4ch RCA

Audio Output :1ch RCA

Video/Audio Compression :H.264(High Profile)；/ G.711A

Recording Mode :Manual>alarm>motion detection>timing

Alarm Input :No

Relay Output :No

Playback Channel :2 (pure local input mode)

Backup Mode :Network backup、USB HDD, USB writer、SATA writer

Network Functions :RJ45 10M/100M Adaptive Ethernet port

Hard Disk :1 SATA（Each maximum support 4T ）

Space Occupation :960H：12~20G/ day*channel

720P：20G~30G/ day*channel

audio：691.2M/ day*channel

USB Interface :2 USB ports

RS485 :RS485； support multiple PTZ protocols

Power Supply :12V/2A

Dimension :255mm(length)* 225mm(width)* 45mm(height)

Encode :8*D1 real-time /8* AHD-L@12fps

Decode :1*D1 real-time /2* AHD-L@12fps

Multi mode input :Pure Analog：8* AHD-L ; 8*D1; 8*HD1;

Mixed：2*D1（Analog）+1*1080P（Network）+1*720P（Network）;

Pure Network：8*1080P; 4*720P; 8* 720p ; 1*1080P,4*1080P;

Wireless :No

Warranty :2Y
