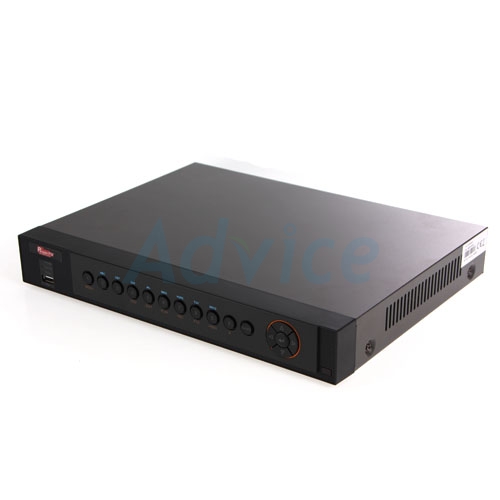

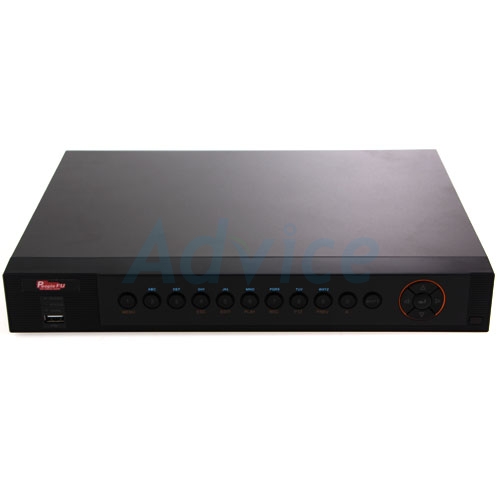

CCTV 16CH. DVR PeopleFu#1216HWD

Brand :PeopleFu

Model :1216HWD

Video Input :16-ch

BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive

Audio Input :1-ch, RCA (2.0 Vp-p, 1 kΩ)

Audio Output :1-ch, RCA (Linear, 1 kΩ)

Video/Audio Compression :H.264 / G.711u

Bit Rate :32 Kbps - 2048 Kbps, or user defined (Max. 3072 Kbps)

Alarm Input :In4/Out1

Hard Disk :1 SATA interface Capacity Up to 4TB capacity

USB Interface :2 Ports

RS485 :1 RS-485 interface, half-duplex

Power Supply :12 VDC

Power Consumption :≤ 20 W

Working Environment :-10 °C ~ +55 °C

Dimension :445 × 290 × 45 mm

Weight :≤ 4 kg

Two-way Talk :1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Sync Playback :16-ch

Ethernet :1, RJ45 10M / 100M Ethernet interface

HDMI/VGA Output :1-ch, resolution: 1080P: 1920×1080×60Hz, SXGA: 1280×1024×60Hz, 720P: 1280×720×60Hz, XGA: 1024×768×60Hz

CVBS output :1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Frame rate :25 fps (P) / 30 fps (N)

Encode :WD1 / 2CIF / CIF / QCIF

- :Dual-stream : Support; Sub-stream: CIF / QCIF @ 25 fps (P) / 30 fps (N))

Stream type : Video, Video & Audio

Warranty :2Y
